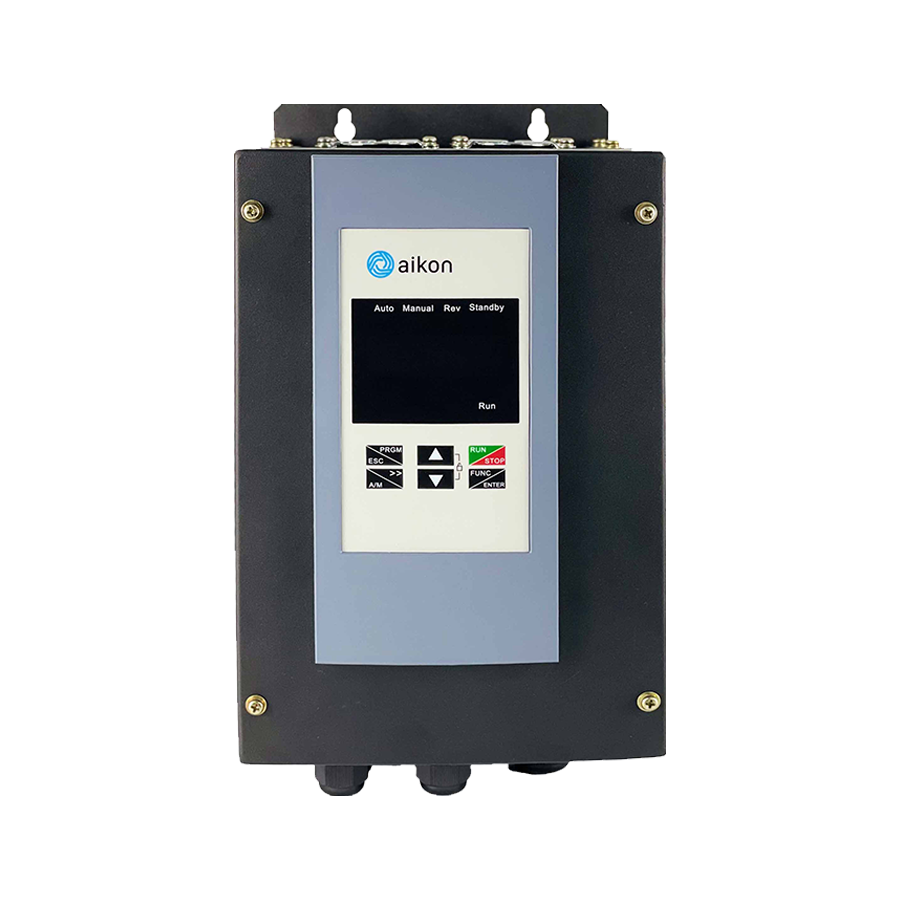

AIKON -productdetails
PD SS
PD SS
Size
功率（kW） A(mm) H(mm) D(mm)
0.75/1.5/2.2 165 188 128
Features
Control Characteristic descriptions
Control Mode V/F control
Starting torque 1Hz 100%
Speed adjustable range 1:20
speed-holding precision ±1.0%
Overload capability 120% rated current for 60s, 150% rated current for 1s
V/F curve Linear
Acceleration/deceleration curve Linear; time range: 0.1-3600s
Description
designation descriptions
Altitude: Lower than 1000m, service in derated capacity above 1000m. Derate 1% capacity
every 100m increase in height.
Environmental temperature: -10℃~+40℃, service in derated capacity for 40℃~50℃. Derate 4% capacity every
1℃increase in temperature
Vibration: <9.8m/S2(1.0G)
Storage temperature: -40℃~+70℃
Intro：
The household economic inverter is mainly used for energy-saving control of household appliances (such as air conditioners, water heaters, range hoods, etc.). Its features include:
Energy saving and power saving: automatically adjust the motor speed to reduce energy consumption.
Smooth operation: realises soft start and soft stop, reducing current impact and noise.
Simple control: Provides basic control functions and is easy to operate.
Compact design: small and easy to install, suitable for home use.
Low noise: quiet operation, suitable for home environment.
Protection function: with overload, overvoltage, overheating and other protections to ensure the safety of the equipment.
Protection funtion
Overload protection
Over-voltage protection
Undervoltage protection
Overcurrent protection
Motor overheating protection
Phase Sequence Protection
Phase loss protection
Over-frequency protection
Start/Stop Protection
Blocking protection
