CMS SERIES
CMS seires

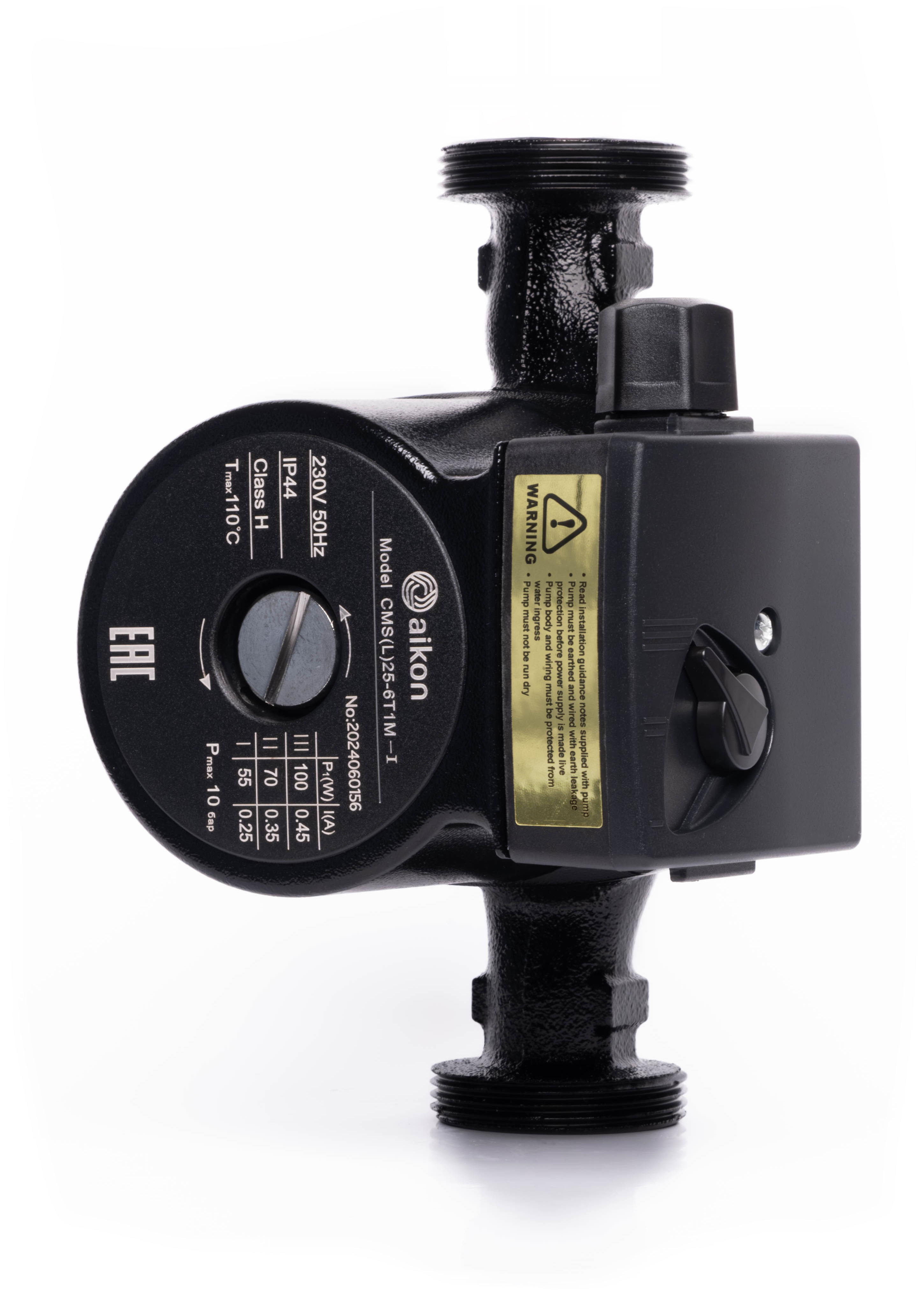

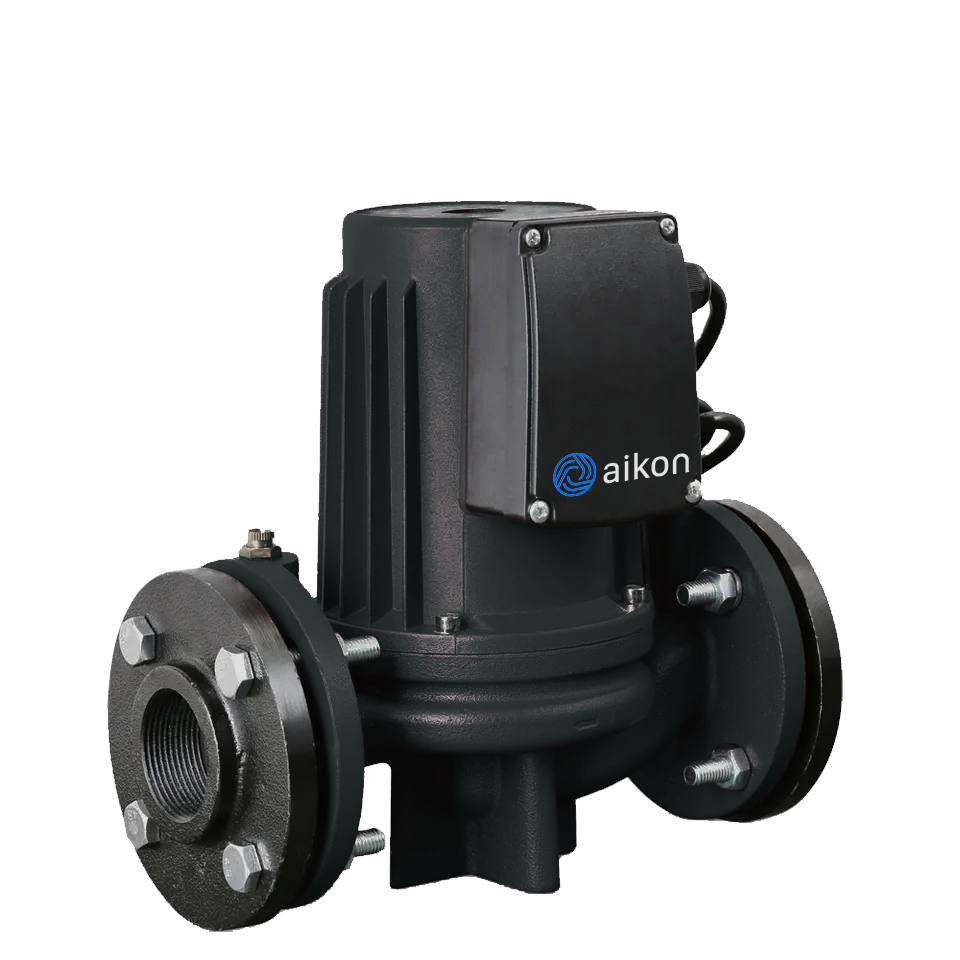

Pump Name: Wet Rotor Circulation Pump
Main Parts Material: SS 304
Pump Description: CMS (L) pump is a single-stage circulating pump with online
connection and wet rotor motor.
The characteristics of a pump are low noise, energy saving, long service life, and easy installation and maintenance.
The device consists of a flow component and a wet rotor vertical engine. The pumping part includes the impeller and the vehicle body.
The engine consists of a stator, rotor, regulator, propeller, and other components. The cooling of engine components is achieved through the internal circulation of pumped liquid.
Description
Application:
• Home heating and hot water systems;
• Air and ground heat source heat pump systems;
• Air conditioning system;
• Industrial hot water circulation system;
• Solar thermal system.
Performance Scope
Diameter: 20-50mm
Max. Flow rate（m³/h）： 38m³/h
Max. Head：16m
Medium Temperature：Continuous temperature -10 ℃~110 ℃, Short term temperature of 130 ℃
Domestic hot water: ≤ 60 ℃
Pressure: MAX 1 Mpa
Drive:220V/50Hz, 380/50Hz, voltage fluctuation value should be within -10%~+10%
